Compliance namespace

Compliance List Tags

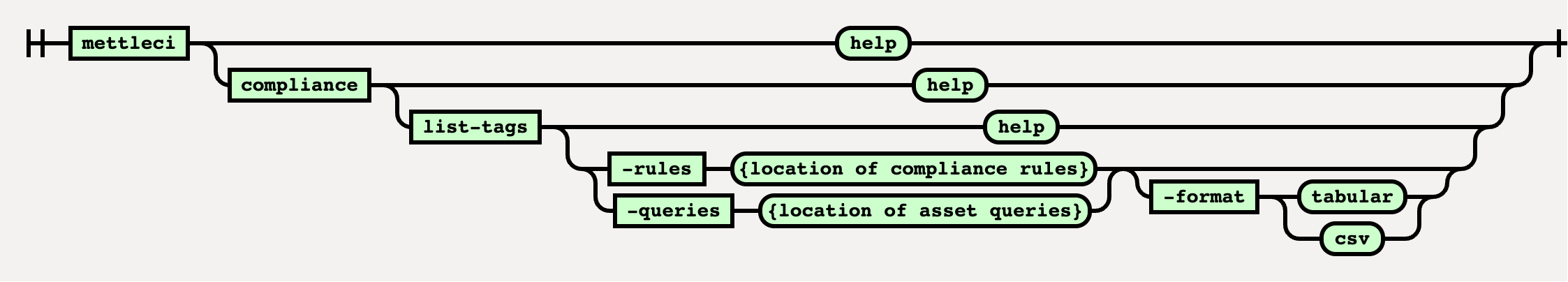

compliance quet syntax

This command analyses a specified set of Compliance Rules or Asset Queries and reports the tags defined for each. Output is available in an easy-to-read tabulated for, or as a CSV for downstream processing. When no format optin

Example

This example shows how to list the tags of a directory of Compliance Rules in both tabulated and CSV formats:

# ####################################
# list-tags output in tabulated format
# ####################################
$> mettleci compliance list-tags -rules ~/Projects/bitbucket.org/compliance-rules -format table
MettleCI Command Line (build 174)
(C) 2018-2022 Data Migrators Pty Ltd
compliance list-tags (v2.2.x)
rules configuration discovered
included rule - 'Adjacent Transformers' (PARALLEL_JOB)
included rule - 'Adjacent Transformers' (SERVER_JOB)
... <SNIP> ...
included rule - 'Transformer With Unreferenced Stage Variable' (SERVER_JOB)
included rule - 'Unique Sort' (PARALLEL_JOB)
                                       Rule Name  Asset Type                 example  fail-ci  fail-upgrade  functionality  governance  maintainability  performance  portability  security  testability
================================================  =========================  =======  =======  ============  =============  ==========  ===============  ===========  ===========  ========  ===========
                           Adjacent Transformers  PARALLEL_JOB               -------  -------  ------------  -------------  ----------  maintainability  -----------  -----------  --------  -----------
                           Adjacent Transformers  SERVER_JOB                 -------  -------  ------------  -------------  ----------  maintainability  -----------  -----------  --------  -----------
                                Audit Annotation  PARALLEL_JOB               example  -------  ------------  -------------  ----------  maintainability  -----------  -----------  security  -----------
                                Audit Annotation  SEQUENCE_JOB               example  -------  ------------  -------------  ----------  maintainability  -----------  -----------  security  -----------
                                Audit Annotation  SERVER_JOB                 example  -------  ------------  -------------  ----------  maintainability  -----------  -----------  security  -----------
                                          <SNIP>  <SNIP>                     ...      ...      ...           ...            ...         ...              ...          ...          ...       ...
               Transformer Uses Abort After Rows  PARALLEL_JOB               -------  -------  ------------  functionality  ----------  ---------------  -----------  -----------  --------  -----------
               Transformer Uses Abort After Rows  PARALLEL_SHARED_CONTAINER  -------  -------  ------------  functionality  ----------  ---------------  -----------  -----------  --------  -----------
    Transformer With Unreferenced Stage Variable  PARALLEL_JOB               -------  -------  ------------  functionality  ----------  maintainability  -----------  -----------  --------  -----------
    Transformer With Unreferenced Stage Variable  SERVER_JOB                 -------  -------  ------------  functionality  ----------  maintainability  -----------  -----------  --------  -----------
                                     Unique Sort  PARALLEL_JOB               -------  -------  ------------  -------------  ----------  maintainability  -----------  -----------  --------  -----------
# ##############################
# list-tags output in CSV format
# ##############################
$> mettleci compliance list-tags -rules ~/Projects/bitbucket.org/compliance-rules -format csv
MettleCI Command Line (build 174)
(C) 2018-2022 Data Migrators Pty Ltd
compliance list-tags (v2.2-SNAPSHOT)
rules configuration discovered
... <SNIP> ...
Rule Name,Asset Type,example,fail-ci,fail-upgrade,functionality,governance,maintainability,performance,portability,security,testability
Adjacent Transformers,PARALLEL_JOB,,,,,,maintainability,,,,
Adjacent Transformers,SERVER_JOB,,,,,,maintainability,,,,
Audit Annotation,PARALLEL_JOB,example,,,,,maintainability,,,security,
Audit Annotation,SEQUENCE_JOB,example,,,,,maintainability,,,security,
Audit Annotation,SERVER_JOB,example,,,,,maintainability,,,security,
... <SNIP> ...
Transformer With Unreferenced Stage Variable,PARALLEL_JOB,,,,functionality,,maintainability,,,,
Transformer With Unreferenced Stage Variable,SERVER_JOB,,,,functionality,,maintainability,,,,
Unique Sort,PARALLEL_JOB,,,,,,maintainability,,,,
$>

Compliance Query Command

This command is for running MettleCI Asset Queries

If you're looking for the Compliance Rules returned by DataStage flow analysis then see the Compliance Test Command.

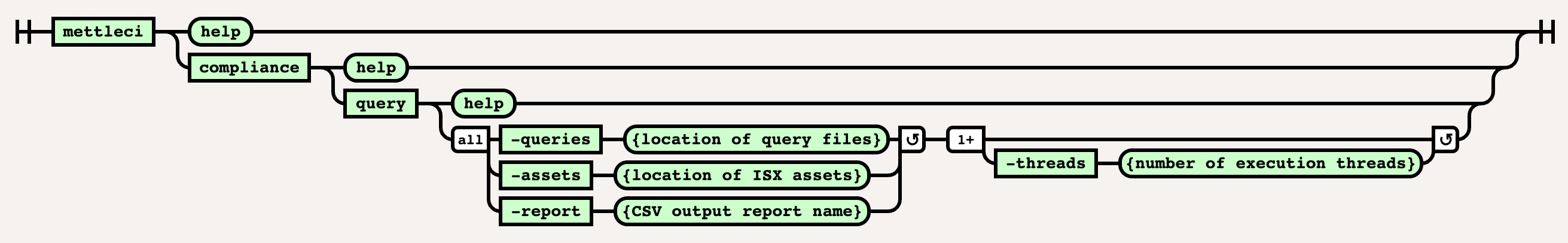

compliance quet syntax

The command line implementation of the Compliance Query functionality exposes the low-level mechanism to produce a report listing the results of the specified Asset Queries.

Example

This example demonstrates how to export a set of ISX files and run Asset Queries against them. Note that asset paths specification in the export command uses the same wildcard rules as the istool command.

# ==============================
# Export the required ISX assets
# ==============================
C:\> mettleci isx export ^
     -domain myteam-svcs.corp.com:59445 ^
     -username myuser -password mypassword ^
     -server myteam-engn.corp.com ^
     -project myproject ^
     -jobname .*LD_S.*
Exporting [.*LD_S.*] from repository...
Exporting DataStage assets...
 * Export 'test2-engn.datamigrators.io/myproject/Jobs/Load/LD_SUPPLIER.pjb' - COMPLETED
 * Export 'test2-engn.datamigrators.io/myproject/Jobs/Load/LD_STOCK_HOLDING.pjb' - COMPLETED
 * Export 'test2-engn.datamigrators.io/myproject/Jobs/Load/LD_STOCKITEM.pjb' - COMPLETED
 * Export 'test2-engn.datamigrators.io/myproject/Jobs/Load/LD_SALE.pjb' - COMPLETED
Export complete
# ================================================================
# Run the specified asset queries against the exported ISX assets
# ================================================================
C:\> mettleci compliance query \
     -assets ./Jobs \
     -queries ./Queries \
     -report compliance.csv \
MettleCI Command Line (build 122)
(C) 2018-2020 Data Migrators Pty Ltd
 <SNIP>
# Done!
C:\>

Compliance Test Command

This command is for running MettleCI Compliance Rules

If you're looking for the Asset Queries typically used in a MettleCI Report Card then please see the Compliance Query Command.

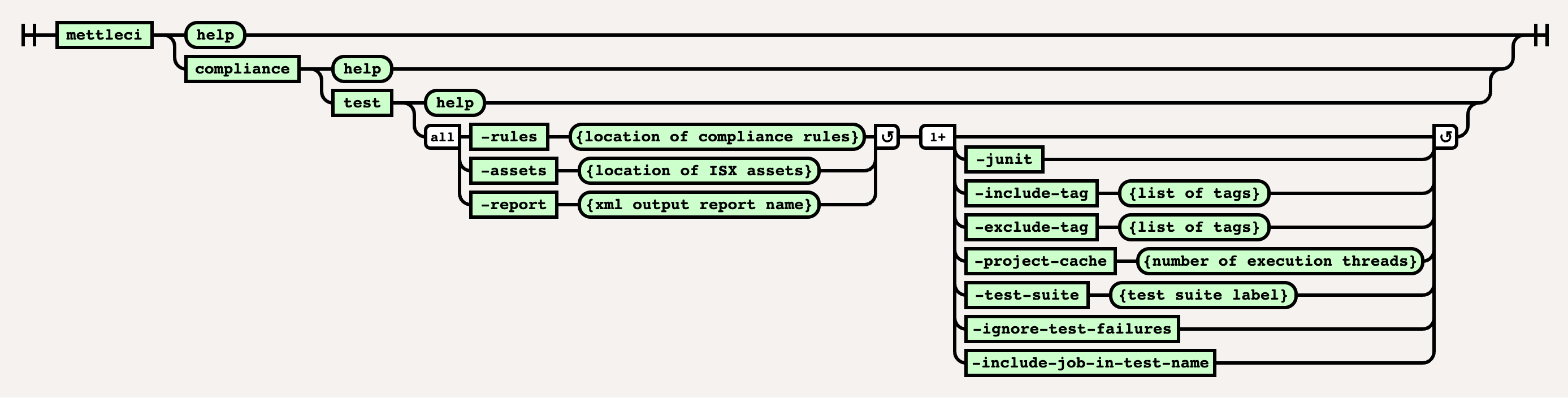

compliance quet syntax

The command line implementation of the Compliance Test functionality enables the production of a Compliance Results report of the specified assets against the specified set of MettleCI Compliance Rules.

For more information on using the -project-cache parameter see our detailed explanation.

Example

This example demonstrates how to export a set of ISX files and run Compliance against them. Note that asset paths specification in the export command uses the same wildcard rules as the istool command.

# ==============================
# Export the required ISX assets
# ==============================
C:\MettleCI\cli\> mettleci isx export ^
     -domain myteam-svcs.corp.com:59445 ^
     -username myuser -password mypassword  ^
     -server myteam-engn.corp.com  ^
     -project myproject  ^
     -location C:\shared\myproject\export  ^
     -include-binaries  ^
     -project-cache C:\shared\myproject\cache
Analyzing test2-engn.datamigrators.io/myproject
Attempting to identify changes with 4 working threads.
Inspecting DataStage assets for changes...
<SNIP>
Change identification complete
Inspecting ParameterSet definition changes...
ParameterSet definition change identification complete
Deleting assets...
<SNIP>
Deletion complete
Exporting DataStage assets...
<SNIP>
Export complete
Attempting to identify last change with 4 working threads.
Inspecting DataStage assets for last change...
<SNIP>
Last change identification complete
# ==================================================================
# Run the specified compliance rules against the exported ISX assets
# ==================================================================
$> mettleci compliance test
  -rules compliance_rules
  -assets datastage
  -report compliance_report_warn.xml
  -junit
  -project-cache ./project-cache
  -test-suite warnings
  -ignore-test-failures
  -include-job-in-test-name
MettleCI Command Line (build 122)
(C) 2018-2020 Data Migrators Pty Ltd
rules configuration discovered
new rule discovered - 'Adjacent Transformers' (PARALLEL_JOB)
new rule discovered - 'CCMigrateTool Stages' (PARALLEL_JOB)
new rule discovered - 'CCMigrateTool Stages' (SERVER_JOB)
new rule discovered - 'Database Row Limit' (PARALLEL_JOB)
new rule discovered - 'Database Row Limit' (SERVER_JOB)
new rule discovered - 'Debug Row Limit' (PARALLEL_JOB)
<SNIP>
new rule discovered - 'One Dataflow' (SERVER_JOB)
new rule discovered - 'Range Lookup' (PARALLEL_JOB)
new rule discovered - 'Too Many Stages' (PARALLEL_JOB)
new rule discovered - 'Too Many Stages' (SERVER_JOB)
new rule discovered - 'Unique Sort' (PARALLEL_JOB)
[1/3] TestJob_0921 (PARALLEL_JOB)
[2/3] TestJob_0930 (PARALLEL_JOB)
[3/3] TestJob (PARALLEL_JOB)
# Done!
$>

References

For a discussion on the use of the include-tags and exclude-tags options see Compliance Rule Tags.
